JW3205

Handheld Optical Power Meter


Features

- The most compact in Size, ideal for field operation
- Power measurements in dBm and mw.
- 10 minutes Auto-off function conserving battery life

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

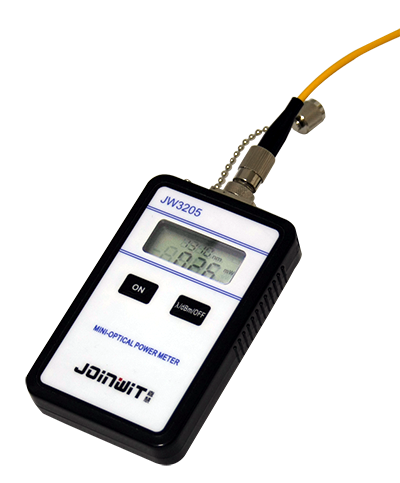

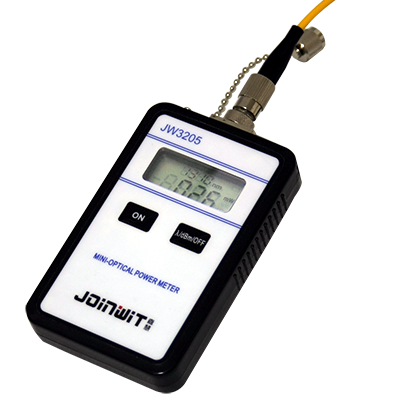

JW3205 mini handheld optical power meter is the most lightweight and compact in size testing instrument. It features ease-of-use and economy advantages and can be used for absolute power measurement in optical fibers. JW3205 in combination with the JW3110 mini handheld light source become the most portable and advantageous testing pair.
Profile
1
Products
TypeJW3205AJW3205C
Wavelength(nm)800~1700nm
Detector InGaAs
Measurement  Range (dBm)-70~+10-50~+26
Uncertainty±5%
Calibrated Wavelength(nm)850,980,1310,1550nm
 Resolution(dB)0.01
Optical ConnectorFC(interchangeable SC,ST) / as well as 2.5mm universal
Power SupplyAlkaline Battery
Battery Operating Time 360 hours with three 1.5V batteries
Operating Temperature(℃)-10 ~ +60
Storage Temperature(℃)-25 ~ +70
Relative Humidity0 to 95% (non-condensing)
Dimension(mm)115X60X20
Weight(g)105
Specifications
2

JW3205 Optical Power Meter,

Alkaline battery,

Instruction Manul,

Cotton swabs and Protective Holster.

3
Standard Packages
