JW3208

Handheld Optical Power Meter


Features

- User self calibration function
- Comfortable LCD display and optional backlight LCD display supports night operation
- Power measurements in dBm or mw and insertion loss in dB
- Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
- 10 minutes Auto-off function can be activated or deactivated.

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

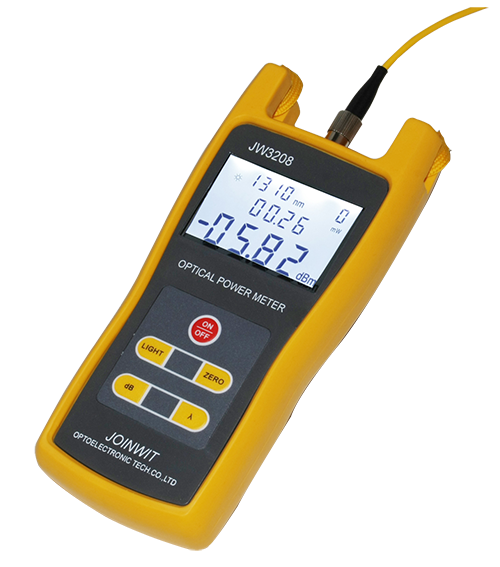

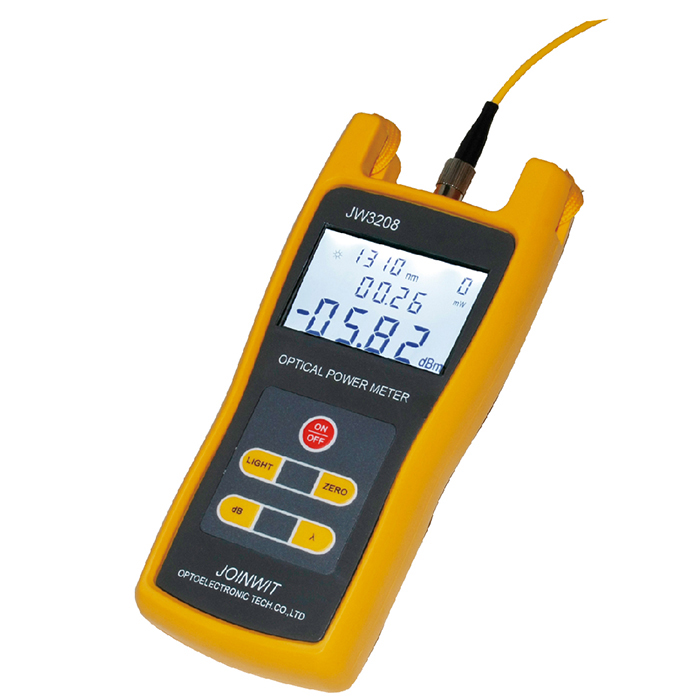

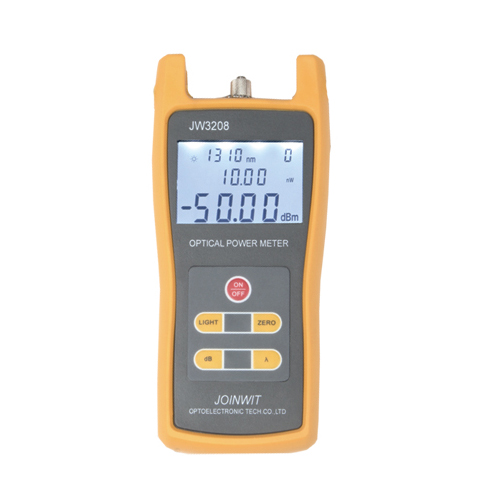

JW3208 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Profile
1
Products
2
Specifications

JW3208 Optical Power Meter,

Protective Rubber Boot,

3pcs 1.5V batteries,

User Manual,

Cotton swabs and Soft carrying case.

TypeJW3208AJW3208C
Wavelength(nm)800~1700nm
Detector InGaAs
Measurement  Range (dBm)-70~+3-50~+26
Uncertainty±5%
Calibrated Wavelength(nm)850,980,1300,1310,1490,1550
 Resolution(dB)0.01

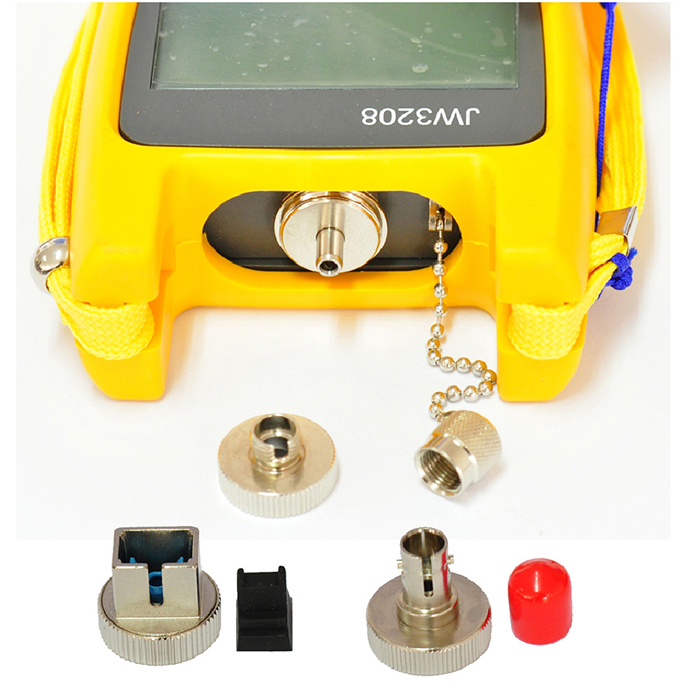

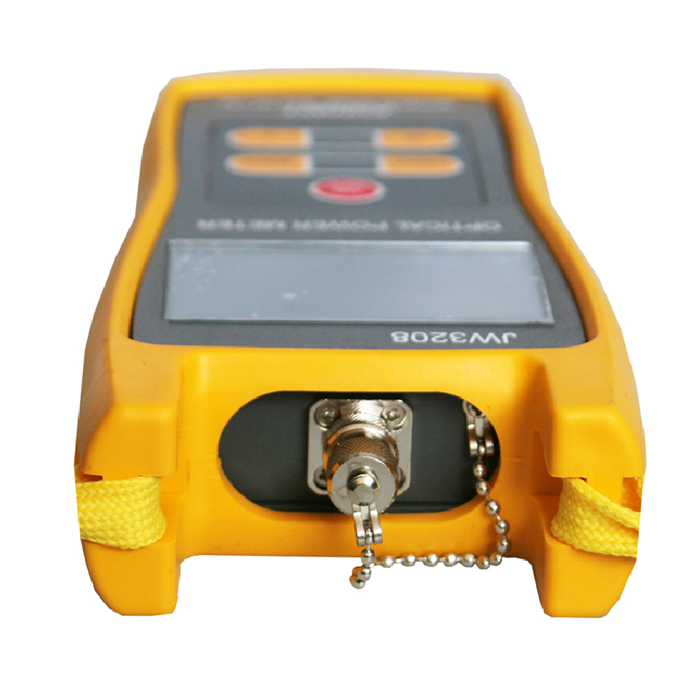

Optical ConnectorFC(interchangeable SC,ST) / as well as 2.5mm universal
Power SupplyAlkaline Battery(3 AA 1.5V batteries)
Battery Operating Time240 h with 1.5V Battery(3)
Operating Temperature(℃)-10 ~ +60
Storage Temperature(℃)-25 ~ +70
Relative Humidity0 to 95% (non-condensing)
Dimension(mm)175x82x33
Weight(g)310
3
Standard Packages
