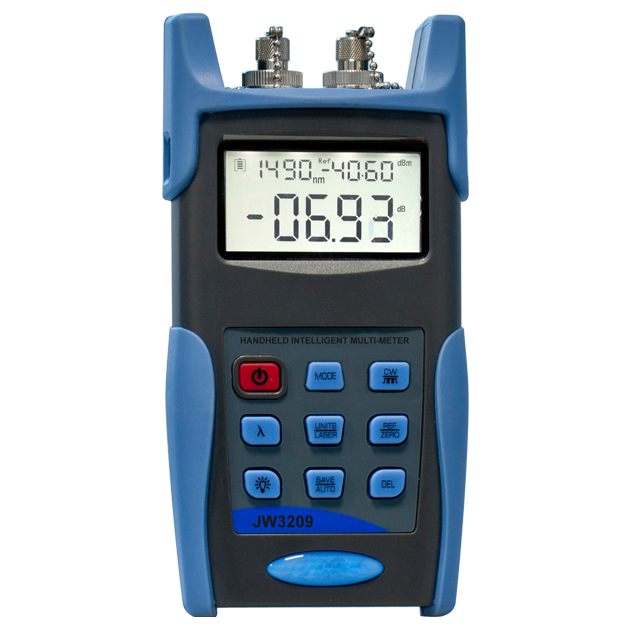

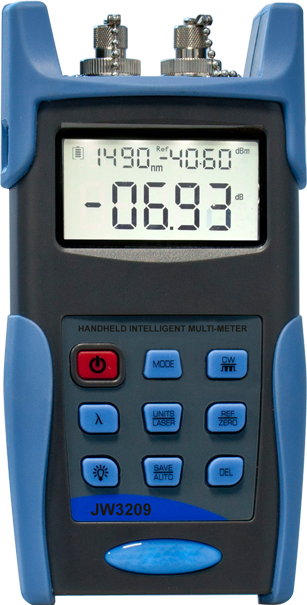

JW3209

Handheld Optical Multimeter



Function

* Users could write their own software by the communication protocol provided

* Automatic wavelength of light source switching

* Frequency identification.

* Simple function mode switching

* High stability of the output power

* Data storage function, up to 1000 test records

* USB communication port for saved testing records download

* Alkaline Battery and Mini USB Adapter for power supply

Applications

- Telecom Maintenance

- CATV Maintenance

- DDN Maintenance

- Fiber Optic lab testing

- Other Fiber Optic Measurements

JW3209 Handheld Optical Multimete integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit. It can also provide data storage and upload functions. It is widely used in installation ,measurement and maintenance of DDN, Telecom and CATV networks.
Profile
1
Products
Specifications
2

Multimeter, Mini USB cable,

5V USB Adapter,

3pcs 1.5V Alkaline Batteries,

CD,

User Manual,

Cotton swabs and Soft carrying case.

TypeJW3209AJW3209C
Optical Power Meter Module
Detector TypeInGaAs
Measurement Range(dBm)-70~+6-50~+26
Rosolution(dB)0.01
Uncertainty ≤±0.25
linearity (dB)≤±0.1
Frequency ID Range(Hz)<10K
Optical Light Source Module
Wavelengths(nm)1310/1550(other wavelengths can be optional)
Typical Ouput Power(dBm)-5
Output Stability (dB,30min,20℃)≤0.1
Modulation Frequencies(Hz)CW,270,1K,2K
General Specifications of Multi Meter
Power Supply3 pcs 1.5V Alkaline Batteries/Mini USB 5V Adapter
Battery Operating Time(h) ≥50 (Both Power Meter and Light Source are working)
≥200(Only Power Meter is working)
Auto-off time (min)10
Communication PortMini USB
Operating Temperature(℃)-10~+60
Storage Temperature(℃)-25~+70
Dimension(mm)175X90X44.5
Weight (g,without batteries)265
3
Standard Packages
