JW3213

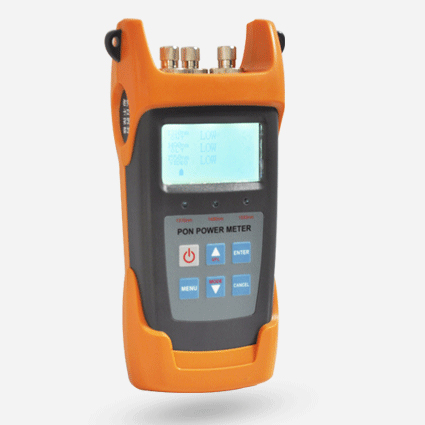

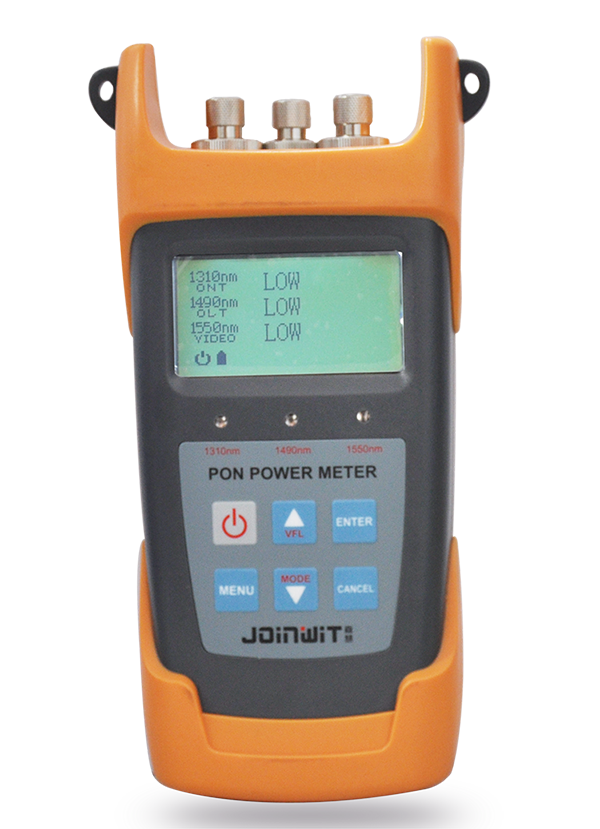

PON Optical Power Meter


Features
* It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
* Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm).
* Used in Burst mode measurement of 1310nm upstream.
* Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
* USB communication port enables data transfer to a PC.1000measurement items can be saved in 3213 PON power meter or computer for data review.
* With optical power meter modual, include 850、1300、1310、1490、1550、1625sixs( 3213AP,3213A  without  850nm wavelength);With visual fault locator modual(3213and3213AV)

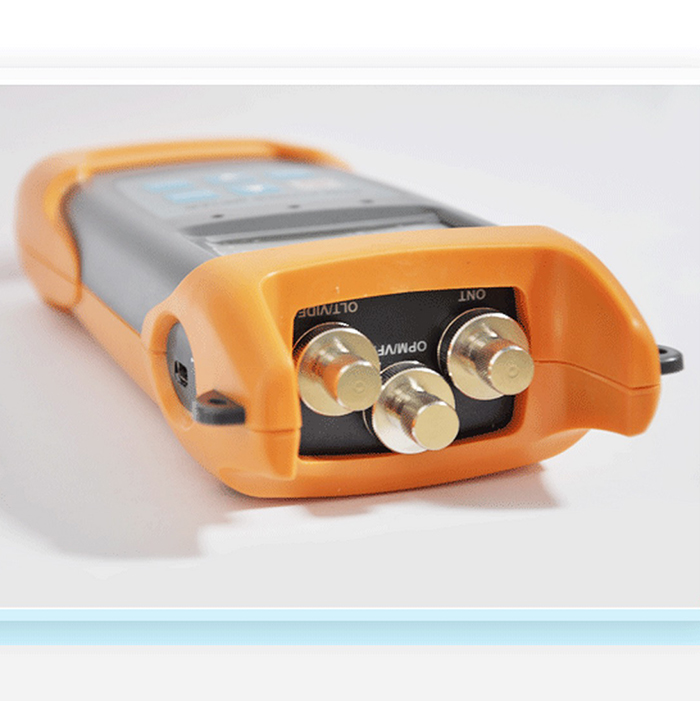

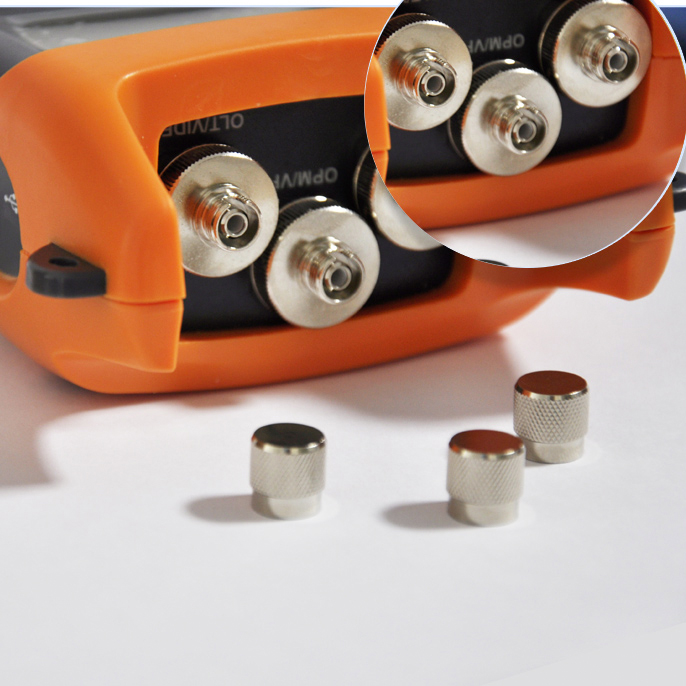

* Optical power meter and VFL with one port.(only 3213A)
* Optional Chinese/English display.
* Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
* 10 minutes Auto-off function can be activated or deactivated

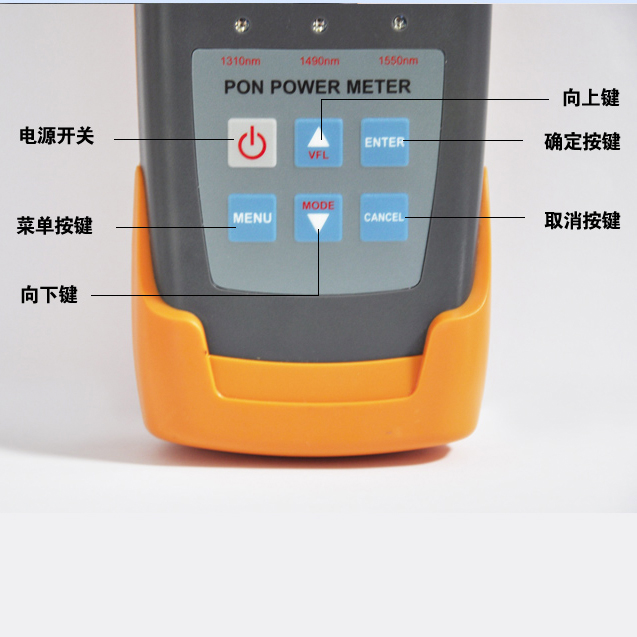

* Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
* Different models corresponding to different function, according to own use to choose .

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

JW3213 Series PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
Profile
1
Products

JW3213 tester  1unit

User Manual     1pc

USB                  1pc

Soft CD             1pc

1.5VAA Battery  3pc

2

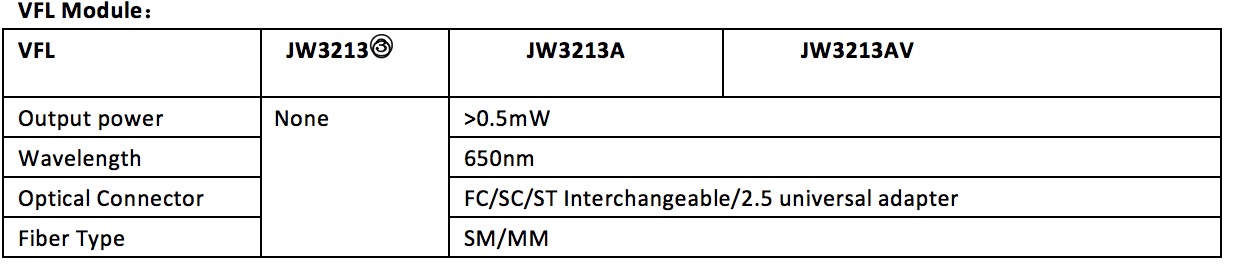

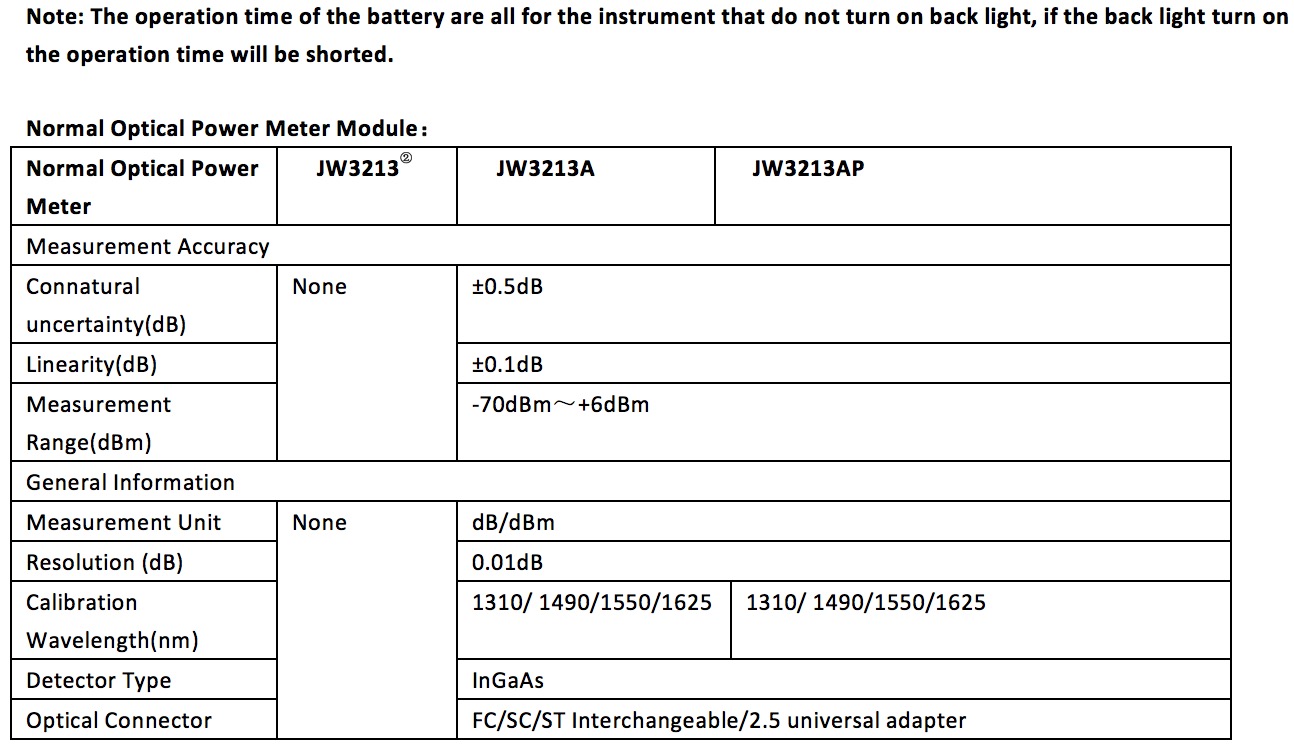

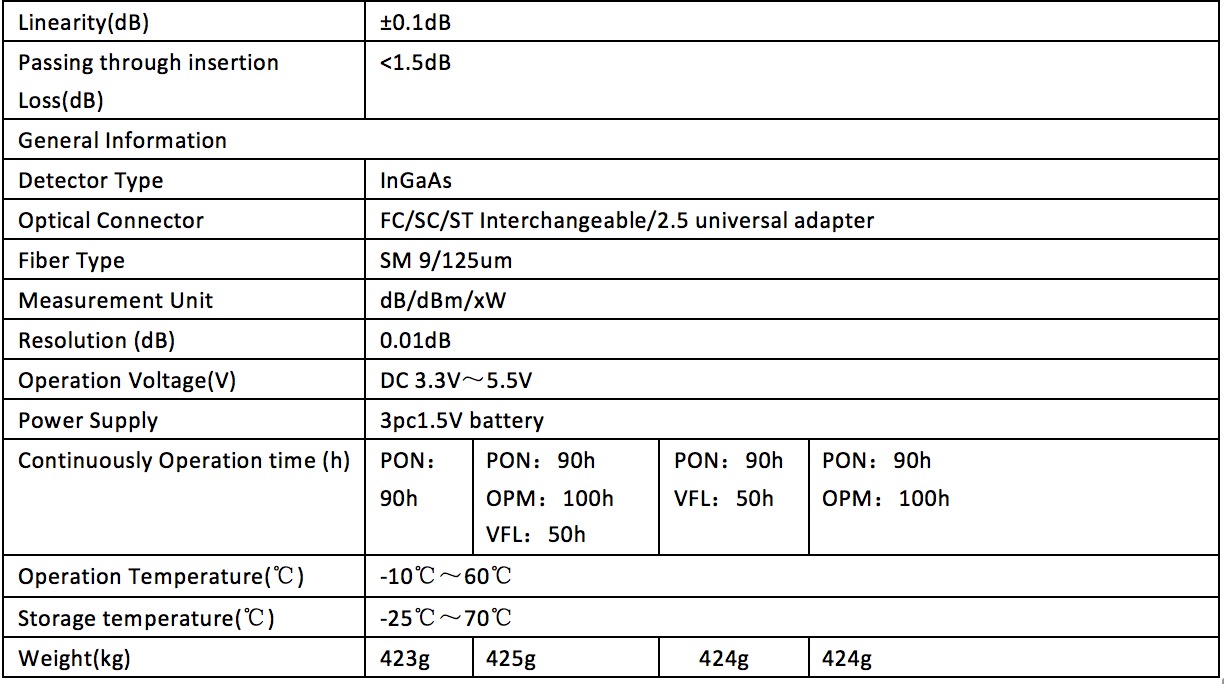

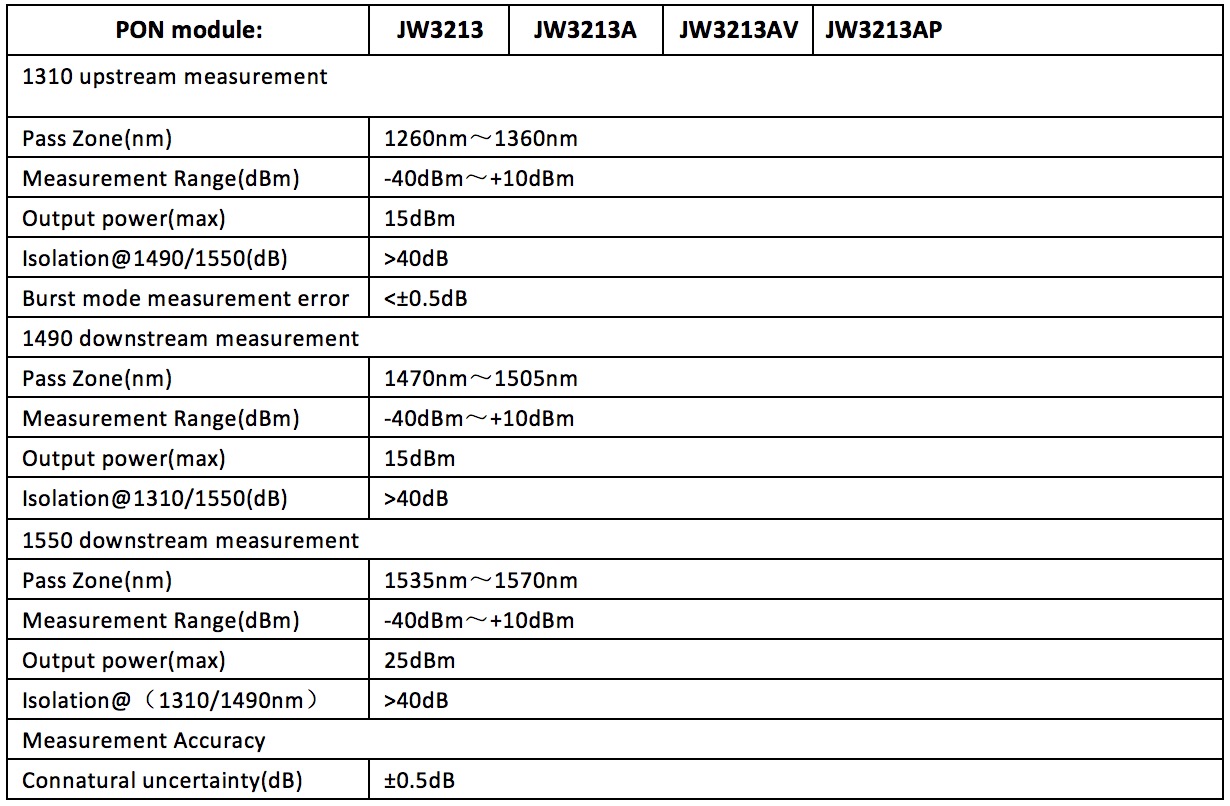

Specifications
3
Standard Packages
