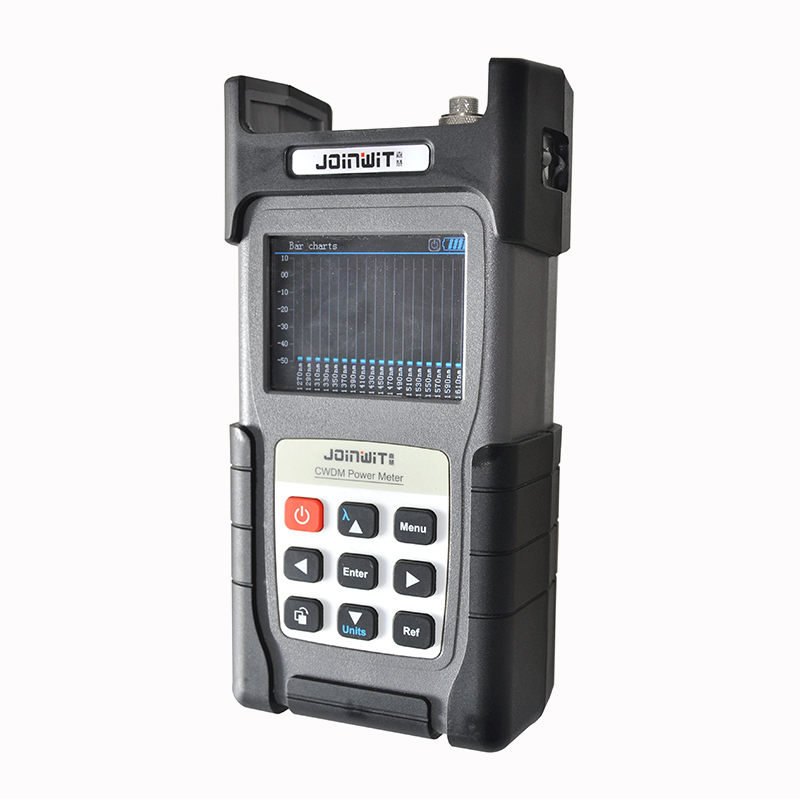

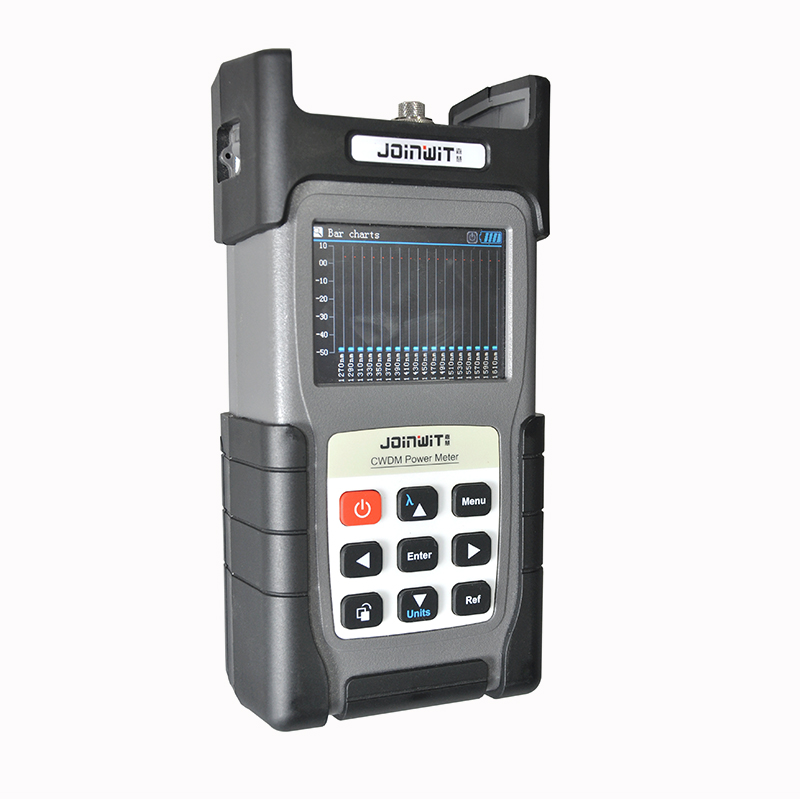

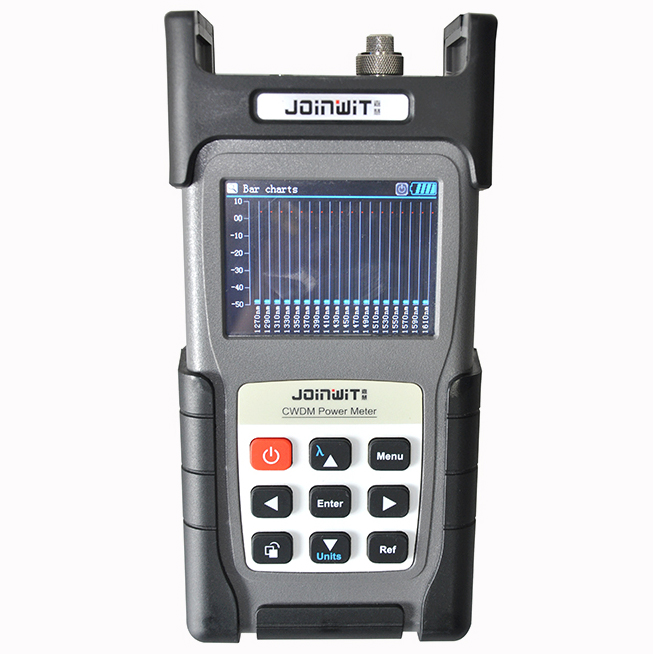

JW3226A

CWDM Optical Power Meter



Applications

- Telecom Maintenance

- CATV Maintenance

- DDN Maintenance

- Fiber Optic lab testing

- Other Fiber Optic Measurements

Features
* Simultaneously test and show 18 wavelengths
* Friendly interface and easy operation
* Save and upload test results via USB port
* 1000 records
* Columnar graphics or list mode to show test data
* Color TFT-LCD display,high resolution 320*240
* Built-in clock and can edit test fiber number
* Quick start operation, requiring no warm-up time
* Light weight
JW3226A CWDM Power Meter is specially designed for CWDM system, covering wavelength from 1270~1610nm.It measures and monitors optical power and attenuation value of 18 channels from wavelength 1270nm to 1610nm wavelength.
All calibrated wavelengths will be tested simultaneously and all test results will show in the LCD screen.
This CWDM power meter features simple operation, quick response and high measurement accuracy which make it an ideal tester in CWDM system installation and maintenance.
Profile
1
Products
2

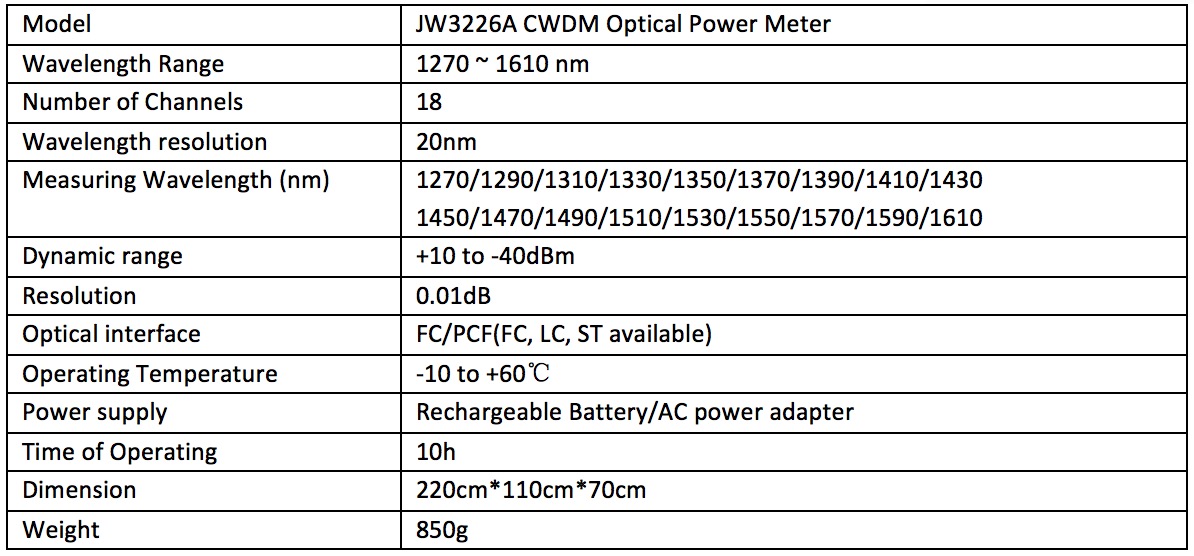

Specifications

JW3226A,

USB cable,

AC Adaptor,

User Manual,

CD,

Cotton swabs and Soft carrying case.

3
Standard Packages
