JW3229

PON Termination Tester


Features
* Test 6 state of ONT and OLT.
* Providing 1310nm and 1490nm wavelengths optical power test.
* Used in Burst mode measurement of 1310nm upstream.
* 10 minutes Auto-off function can be activated or deactivated
* AA alkaline and AC adapter for power supply,Rechargeable Battery is optional
* Support English and Chinese
* Threshold can be set
* Providing VFL function

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

Request quote

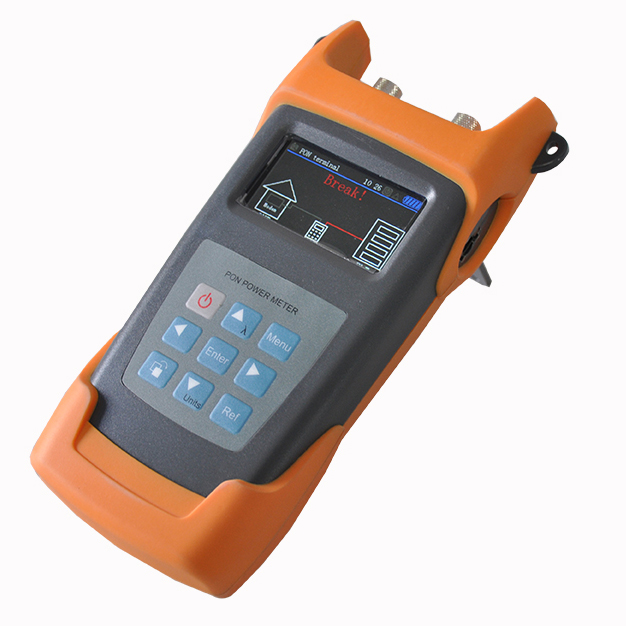

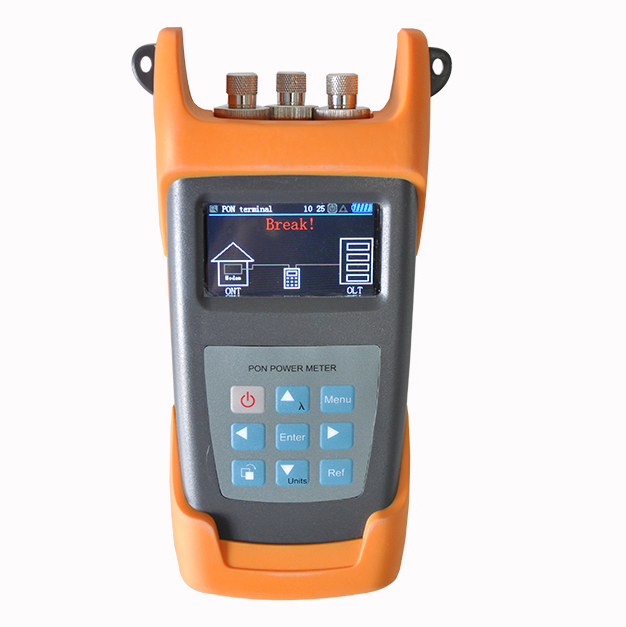

JW3229 PON Termination Tester is Joinwit newly designed fiber optic tester, it aims at PON network installation, PON network maintenance. It can show 6 states of ONT and OLT.It can find problem of PON network easily.
Profile
​1
Products

JW3213 tester,

User Manual,

USB,

Soft CD,1.5VAA Battery


​2
Specifications
​3
Standard Packages
ModelJW3229 PON Termination Tester
Test mode6 state (1.On Line,2.Break,3.ONT Bad,4.No Power,5.Fall Off,6.ONT Fatal)
Insertion Loss(dB)≤1.5

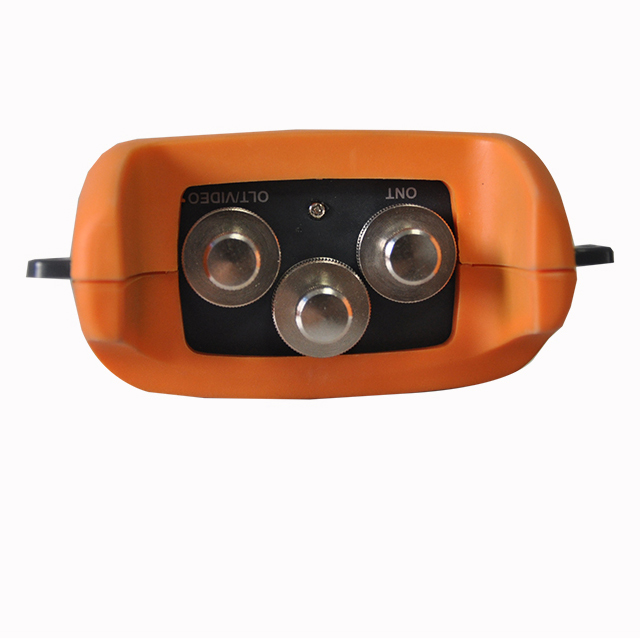

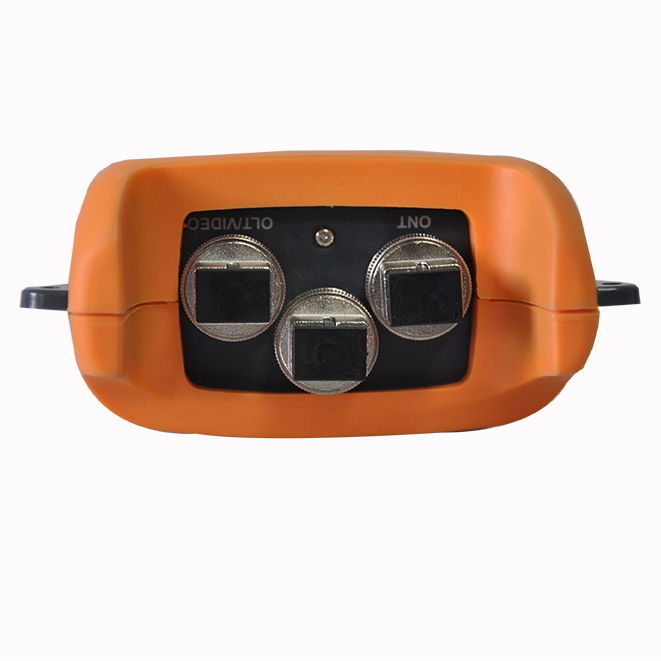

Optical ConnectorSC/PC (FC, SC, ST available)
PON test mode1310 upstream1490 downstream
Measurement Range(dBm)+10 to -35+12 to -40
OPM Uncertainty (dB)≤0.5
Calibration Wavelength（nm）1310/1490/1550/1625
Display resolution(dB)0.01
Display typeColor TFT
Power supplyRechargeable Battery/AC power adapter/Alkaline battery
Communication PortMini USB
Battery Operating time (h)10h
Operation Temperature(℃)-5 to +40
Storage Temperature(℃)-10 to +70
Dimension(mm)192*102*50
Weight(g)423
