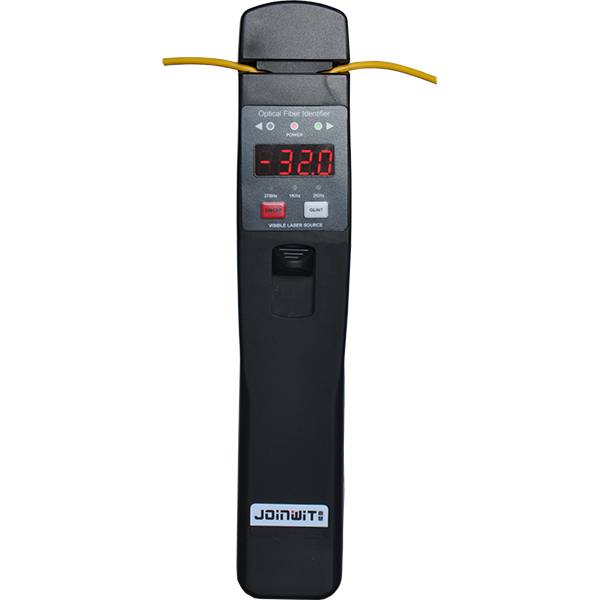

JW3306D

Handheld Optical Fiber Identifier



Function

* Indicate the signal directions and power in fiber

* Indicate the signal presence or absence(Live or dark fiber)

* Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning

* Displays the relative core power

* Don't need to replace adaptor

* Lower power indication

* Build in VFL function

Applications

- Telecom Maintenance

- CATV Maintenance

- Fiber Optic lab testing

- Other Fiber Optic Measurements

Request quote

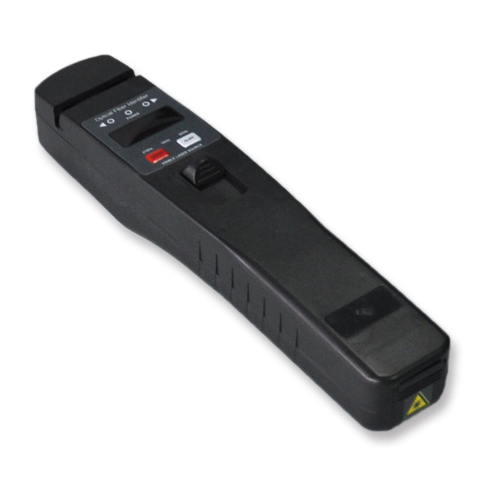

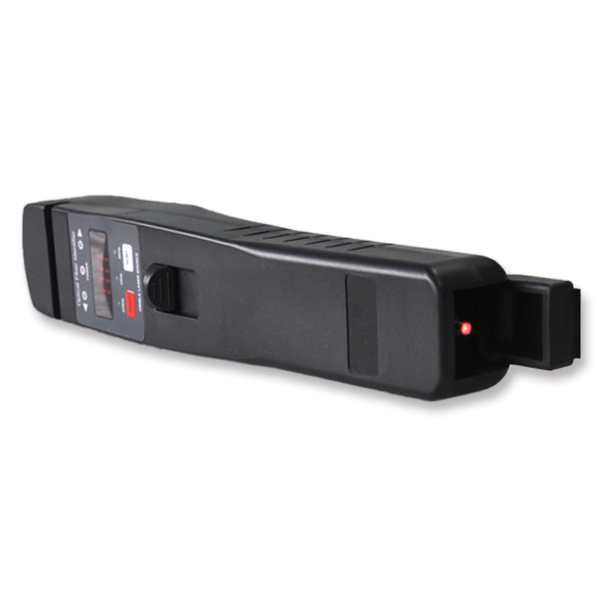

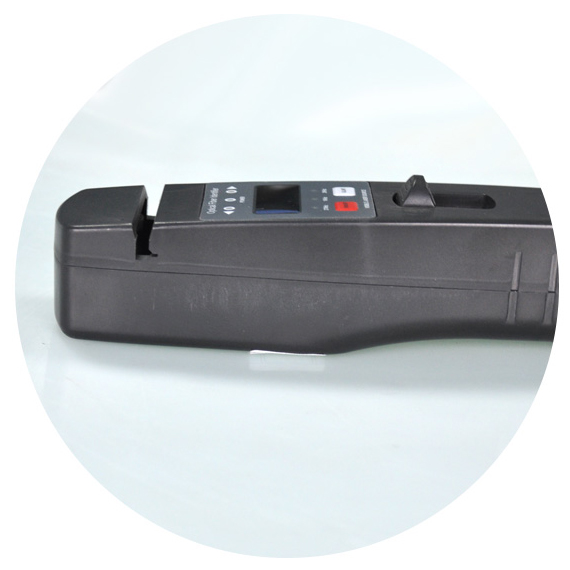

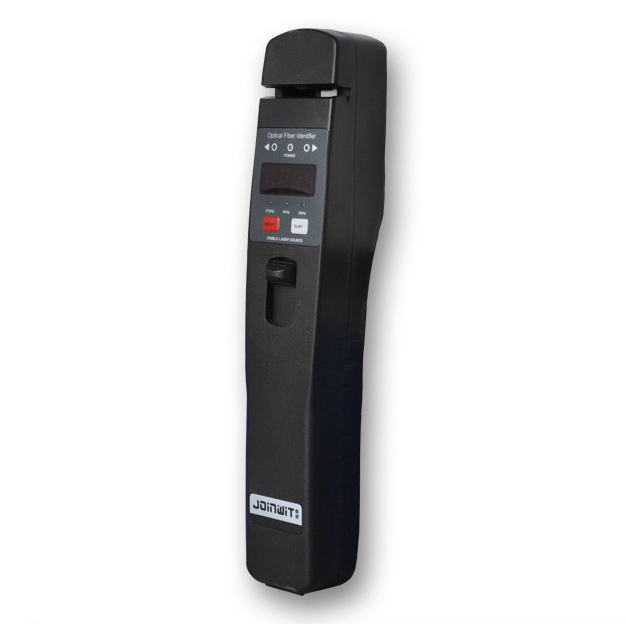

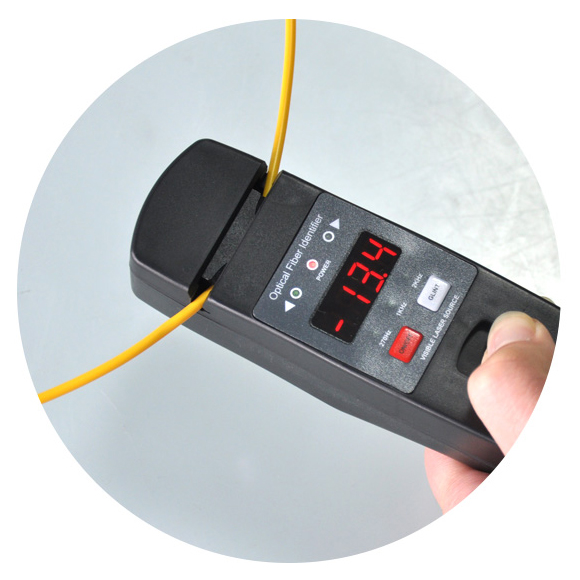

JW3306D Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function. Useing the macro bending technology on line for nondestructive testing, JW3306D can measure the signal direction and power and avoid misoperation resulting in interrupted lines.

Profile
​1
Products
Specifications
​2

JW3306D Optical Fiber Identifier,

Alkaline battery,

User Manual, Cotton

​3
Standard Packages
RangeIdentified Wavelength Range750nm-1700nm
Insertion Loss   1.0dB
Fiber Type＜3mm Fiber
Identified Signal Type 270Hz/1KHz/2KHz
Display Type LED
Detector Type  1mm InGaAs
Minimum detection power

 -35dBm(1550nm)

 -30dBm(1310nm)

Center Wavelength 650nm
Output Power  10mW
Alkaline Battery      2*AA
Battery Life ＞60H
Operating Temperature   0~+50℃
Storage Temperature-20~+60℃
Weight    200g
Dimension 230*43*48mm
other FunctionsPower Measurement
Auto-off function
