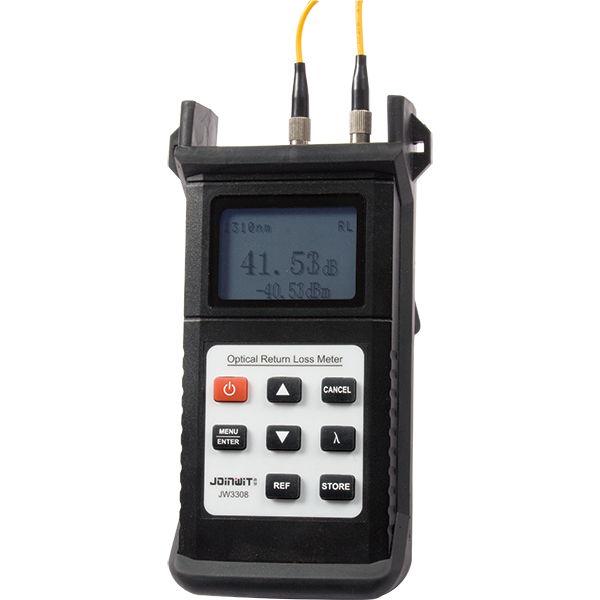

JW3308

Handheld Return Loss Tester



Function

1. A variety of functional test pattern (RL.IL.OPM.OLS)

2. The test data uploading is stored.

3. Support USB power supply function.

4. Interface simple, easy to operate.

Applications

- Telecom Maintenance

- CATV Maintenance

- Comprehensive cable construction system

- Optical instruments research and development

- Optical communication education and lab testing

- Other optical project

Request quote
JW3308 handheld return loss tester is used to measure the return loss in the field fiber optic linking, in order to adjust the quality of the optic fiber end-face, and to make sure the fiber optic communication is in good condition. This 3308 handheld return loss tester can realize measurement of Return Loss, Insertion Loss, Output power, and also can be used as the laser source. Moreover, it has the data storage function of 500 measurement items.
Profile
​1
Products
Specifications
​2

JW3308 Main Body,

Protective Rubber Boot,

Rechargeable battery,

Power Supply Adaptor, Instruction Manual and Cotton Swabs and Rigid hard carrying case.

Model
Handheld Return Loss Tester 3308
Return Loss Testing
Wavelength(nm)1310/1550
Plus Width(nm)<5
Displaying range(dB)-70~+0
Accuracy(dB)±0.5
Optical ConnectorFC/APC
Resolution(dB)0.01
Power Meter
Wavelength(nm)800~1700
Calibrated wavelength(nm)850, 1300, 1310, 1490, 1550, 1625
Connatural uncertainty(dB)±0.25
Displaying Range(dBm)-70 ~+6
Communication PortUSB
Alkaline battery3*AA,1.5V
DisplayLCD
Operation Temperature(°C)-10~+60
Storage Temperature(°C)-25~+70
G.W.380G
Packing sizes180mm(L)*90mm(W)*36.5mm(H)
​3
Standard Packages
