JW3402

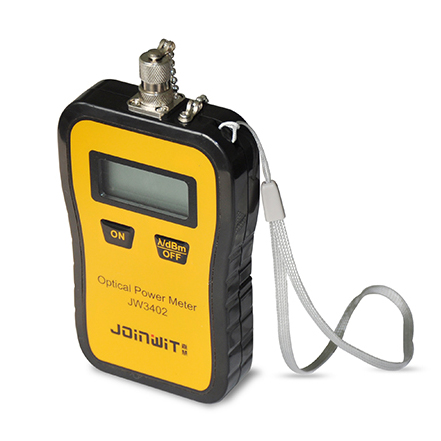

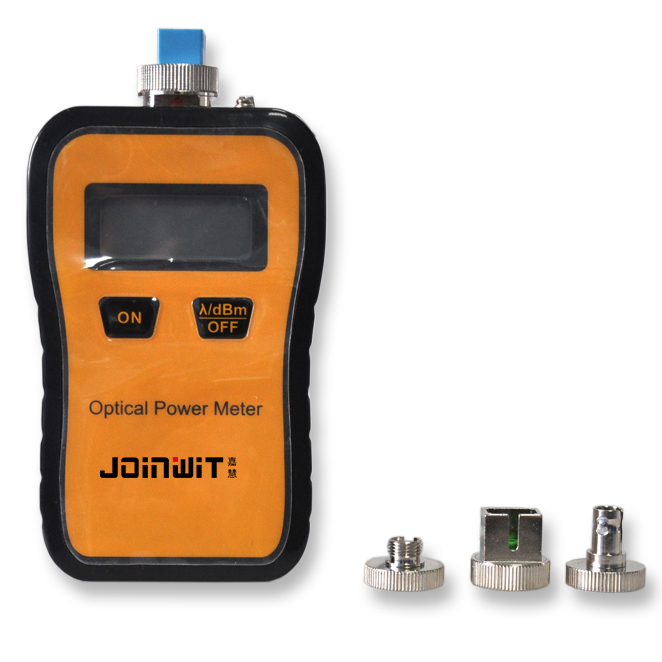

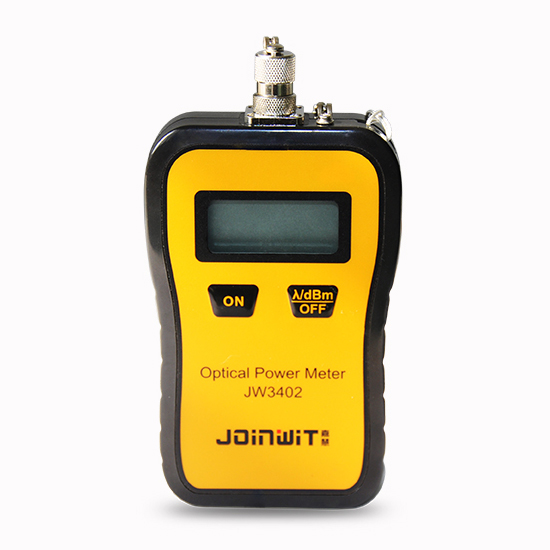

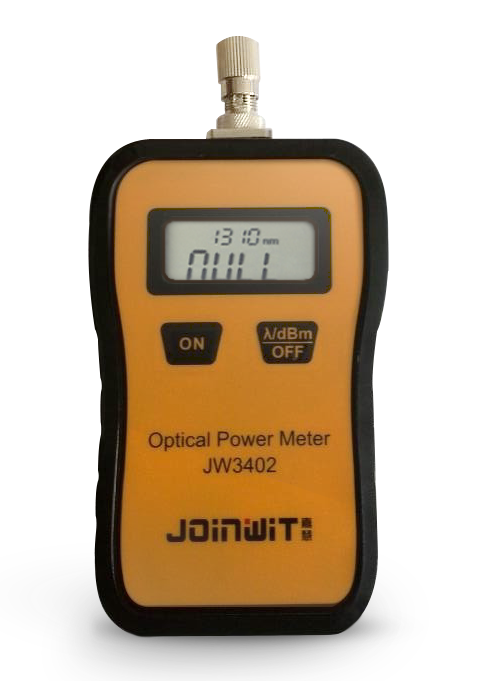

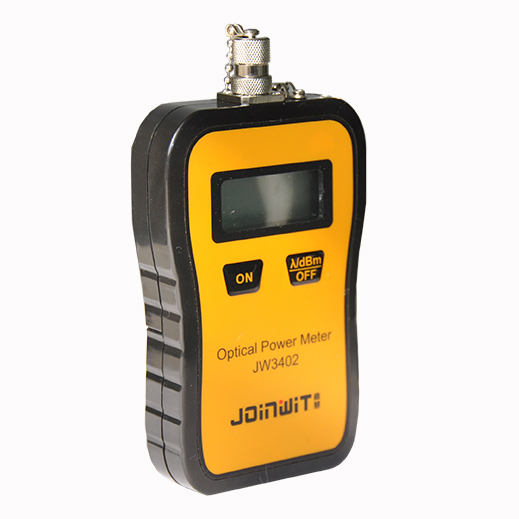

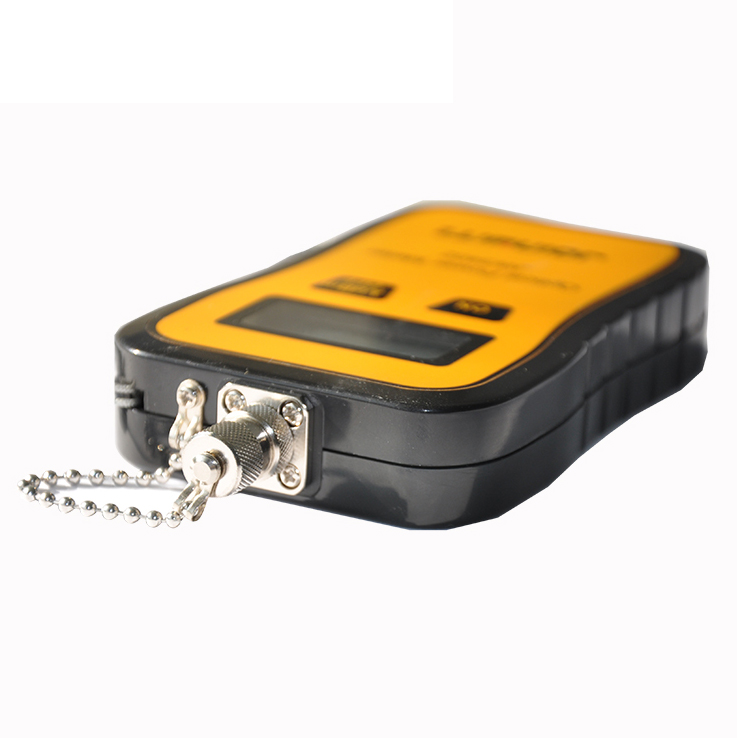

Handheld Optical Power Meter


Features

- Simple user interface
- mall size, easy to carry
- Wide testing range
- Automatic reminding of low battery

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

Request quote
JW3402 Optical Power Meter is a highly cost-effective portable power meter and it’s newly launched by the Joinwit Company. It can be used for the optical power measurement within the wavelength 800～1700nm. JW3402 also has a wide measurement range which is more than 70dB. It’s designed with the common wavelength calibration points, such as 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm. The instrument is widely used in fiber-optic link construction, testing and maintenance.
Profile
​1
Products
TypeJW3402AJW3402C
Wavelength(nm)800~1700nm
Detector InGaAs
Measurement  Range (dBm)-70~+6-50~+26
Uncertainty(dB)≤±0.25
Calibrated Wavelength(nm)850,980,1310,1550nm
linearity(dB) ≤±0.1
 Power supplyAAA 1.5V battery(3pcs)
Auto-off time10mins
Battery continuous operation time(h)300
Working temperature（℃）-10 ~ +60
Storage Temperature(℃)-25 ~ +70
Dimension(mm)166*106*20
Weight(g)90
Specifications
​2

Optical power meter,

Instructions,

Oxford bag,

Certificate,

​3
Standard Packages
