JW4103N

Optical Talk Sets



Function

* Full-duplex digital communication with high quality conversation connection and low background noise

* Together with Optical Clip-on Coupler, enables on line communications available

* Combining functions of both a digital optical phone call and a stabilized light source.

* Large LCD display with backlight

* Low battery power indication

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

JW4103N Optical Talk Set is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network.
The JW4103N Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.
Profile
1
Products
Specifications
2

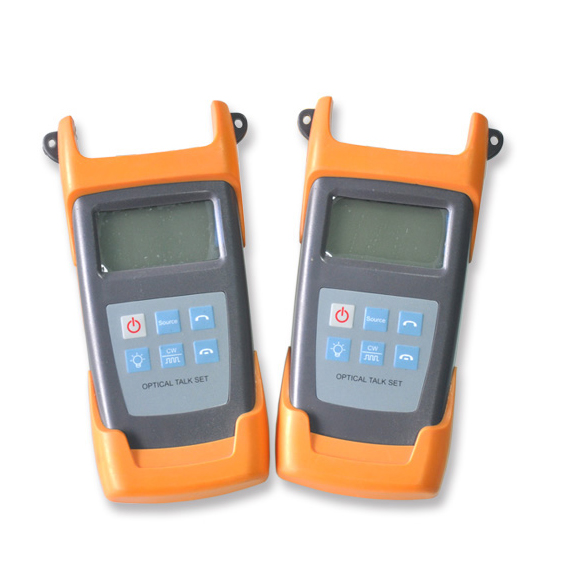

Optical Talk Set (pair),

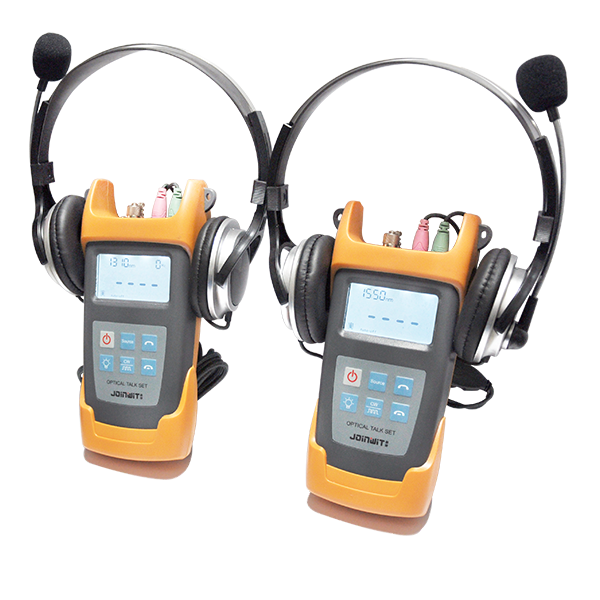

Headset,

3 pcs 1.5V Alkaline Batteries,

8.4V Power Supply Adaptor,

User Manual,

Cotton swabs and soft carrying case.

3
Standard Packages
Type
JW4103N
Wavelength(nm)1310/1550
Emitter TypeFP-LD
Transmission Distance(KM)≥100
Dynamic Range(dB)≥ 33
Output Power(dB)-5~-7
Modulation(Hz)CW,270,1K,2K
Output Stability (dB,30min,20 °C )≤ 0.1

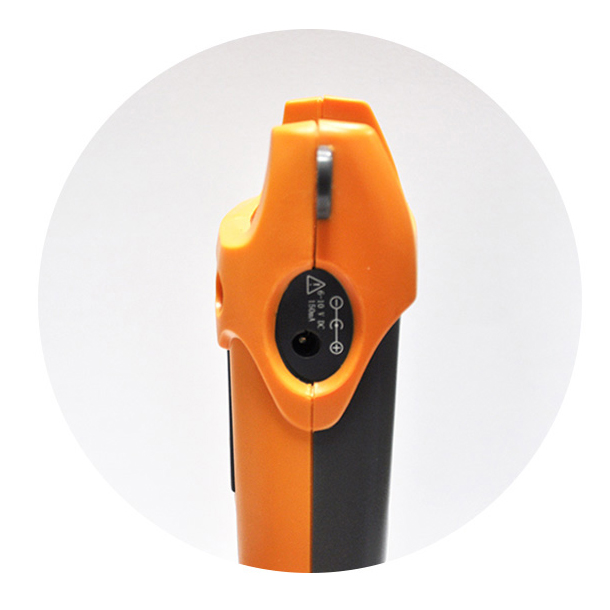

 Power Supply3 pcs 1.5V Alkaline Batteries/8.4V Power Supply Adaptor
Battery Operating Time5 hours

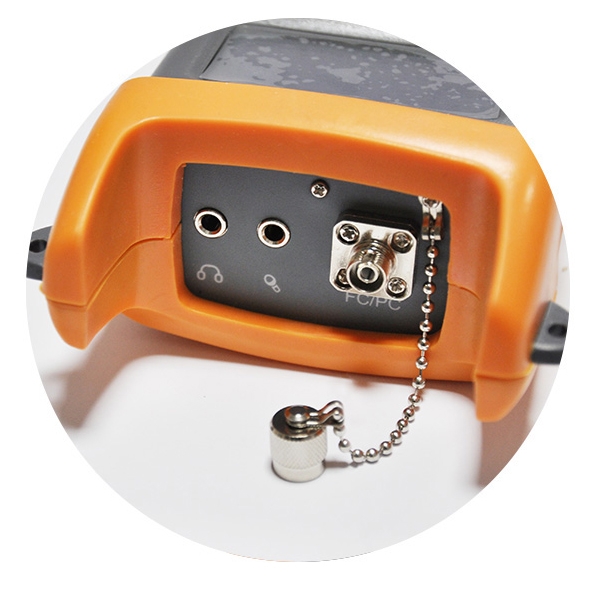

Optical ConnectorFC/PC
Operating Temperature(°C)-10 ~ +60
Storage Temperature(°C)-25 ~ +70
Dimension(mm)198X102X50
Weight(g)310
 Remark: Joinwit also provides Fiber Optic Clipon Coupler device according to customers needs
