JW4106

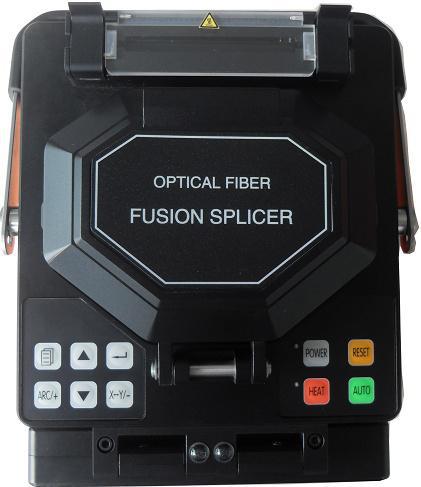

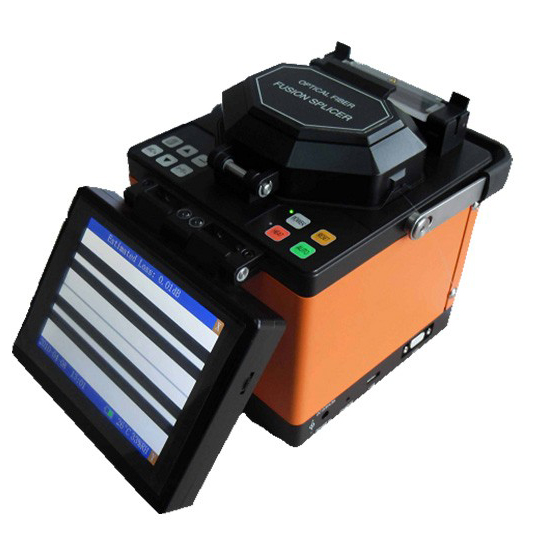

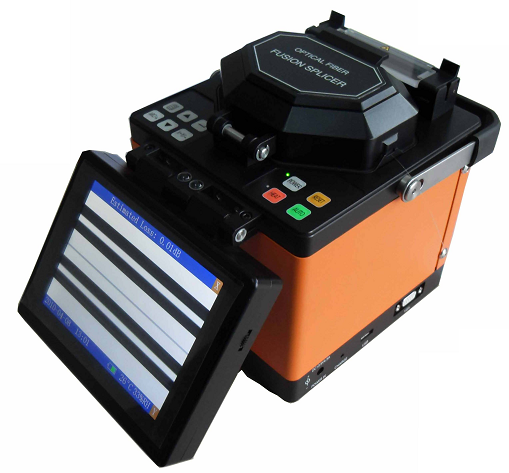

Fusion Splicer


Features
* High-resolution true color 5.7 inch LCD display
* The advanced core to core fiber profile alignment system(PAS)
* Real time calibrating system ,parameter needn’t be adjusted
* X/Y axes were displayed meanwhile, Magnification up to 304 times
* 8 seconds splicing time, 30 seconds Heat-Shrinking
* Battery capacity was display in real time, precisely

* Built-in high capacity battery, support 220 times splicing and heating, to meet one days’ work
* Long Electrode Lifetime, up to 4000 times
* The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s
* Three Splicing modes: auto, half-auto, manual
* Built-in super high-brightness LED supply convenience for night work
* Auto calculate splicing loss
* Small bulk and light weight, only 2.8kg include battery
* 4000 results Storage
* USB data interface &VGA

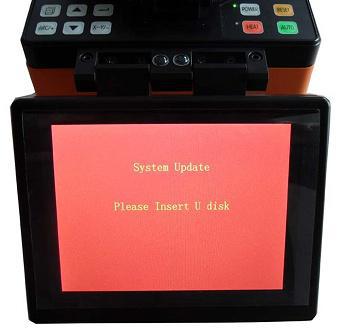

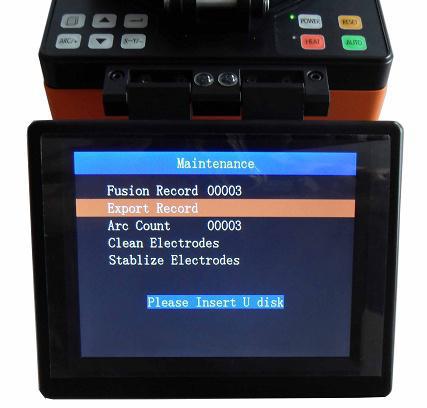

* One button operation to finish results download or software update
* Close shield splice automatically, Close heater lid heat automatically

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

JW4106 fusion splicer adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, LCD monitor displays all steps of fiber fusion clear at a glance. Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less. Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications. Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, English etc.
Profile
1
Products

Instrument (Main Body),

Fiber Cleaver,

Fiber Coat Stripper,

Internal Battery,

Charger,

AC Power Cord,

2G USB Flash Disk,

Spare Electrodes (one pair),

Cooling Tray,

Alcohol Pump Bottle,

Carrying Case,

Carrying Belt,

User's Manual.

2
Specifications
ModelJW4106
Fiber TypesSingle mode (ITU-T G.652), multimode (ITU-T G.651), dispersion shifted (ITU-T G.653), non-zero dispersion shifted (ITU-T G.655)
Average Splicing Loss0.02dB  with G.652, 0.01dB with G.651 and 0.04dB with G.653 and G.655
Splicing & Heating TimeTypical splicing time:8s, Typical heating time:30s
Return Loss60dB or greater
Fiber Coating100μm to 1000μm
Fiber Cladding80μm to 150μm
Fiber Cleave Length8~16mm(coating diameter<250µm), 16mm(coating diameter 250~1000µm)
Program10 units factory setting SM program, 10 units factory setting MM program, and 30 units user setting SM program,30 units user setting MM program
Align ModeAdvanced profile alignment system(PAS)
Storage4000 results
Data TransmissionUSB port &VGA
HeaterAuto Heat Mode, the typical heating time is 30 seconds
Heat-Shrinkable Tube40mm,60mm and a series of micro Heat-Shrinkable Tubing

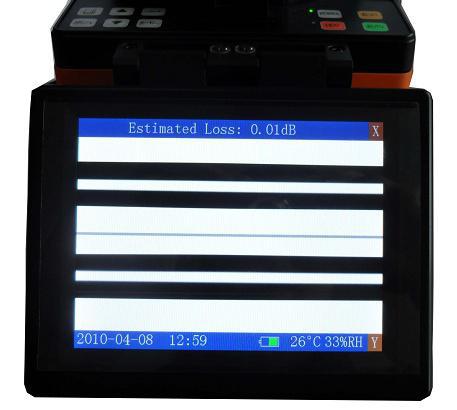

Screen DisplayTwo CMOS cameras,5.7 inch 640*480 LCD., core of the fiber is clearly visible
Lighting for ConstructionBuilt-in super High-brightness LED supply convenience for night work
MagnificationsVertical 152times,horizontal 304times
Work modeAutomatic, Half Automatic, Manual
General Specifications
Power SupplyAlternating Current:100-240 50Hz/60Hz 30W, Direct current:13.5V/4.5A Built in 11.1V Li-ion battery charger and AC adaptor
Battery LifeSupport 220 times splicing and heating on one charge(3.5hours) at least
Battery LifetimeCycle life up to 300~500 times, replaceable
Tension Test2N
Electrode Lifetime>4000 times, replaceable
Operating Temperature-25℃ ~ 50℃
Storage Temperature-40℃ ~ 80℃
Relative Humidity0 to 95% (non-condensing)
Work Altitude0~5000 meters
Instrument Weight2.3kg(no battery ), 2.8kg(including battery)
Dimensions(L x W x H)160mm×150mm×140mm
Package G.W/N.W 8.0/7.0kg
Package (L x W x H)500mm×350mm×400mm
