JW3216

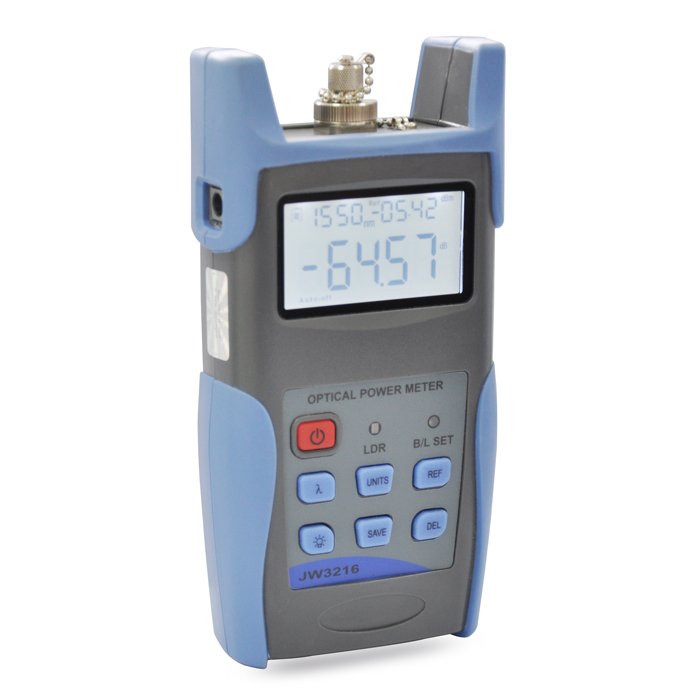

Handheld Optical Power Meter


Features
- Wave ID—Automatic wavelength identification and switching (when used with JW3116 handheld light source)
-  Frequency ID/Tone detection---Automatic frequency identification
-  Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
- Data storage function, up to 1000 test records
- USB communication port for saved testing records download
- Reference power level can be set up and stored
- User self calibration function
- Auto-off function can be activated or deactivated.
- AA alkaline and AC adapter for power supply
- Low battery indication

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

JW3216 Handheld Optical Power Meter is Joinwit newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with JW3116 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the JW3216 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the JW3216 features good appearance, good touch feeling and considerate humanity design.
Profile
1
Products

JW3216 Optical Power Meter,

3pcs 1.5V batteries,

AC Adaptor,

User Manual,

Cotton swabs and Soft carrying case.

2
Specifications
ModelJW3216AJW3216C
Calibrated(nm)850, 1300,1310,1490,1550,1625
Detector typeInGaAs
Measurement Range(dBm)-70~+6-50~+26
Uncertainty (dB)±0.15(3.5%)
linearity (dB)±0.02
Display resolution(dB)0.01
Frequency ID(Hz)270,330,1K,2K
Wave ID(nm)1310,1490,1550,1625
Date storage capacity1000
Communication PortUSB
Optical Connector typeFC,SC,ST interchangeable
Alkaline battery3*AA,1.5V
Power Supply Adaptor(V)8.4
Battery Operating time (h)200
Operation Temperature(℃)-10~+60
Storage Temperature(℃)-25~+70
Outline size(mm)/weight180*90*45(250g)
3
