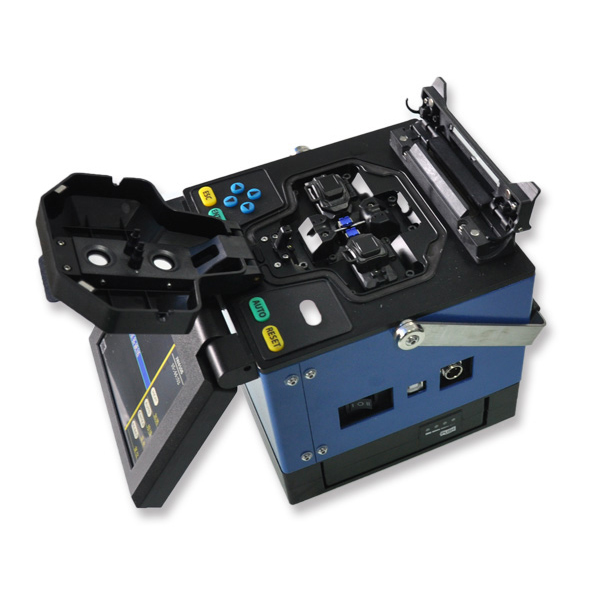

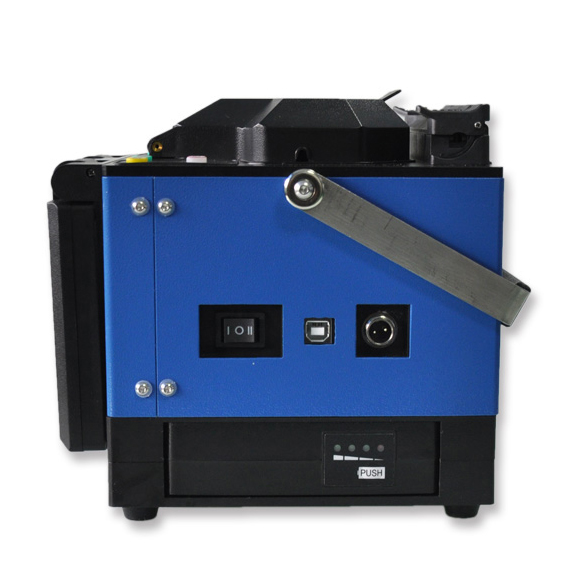

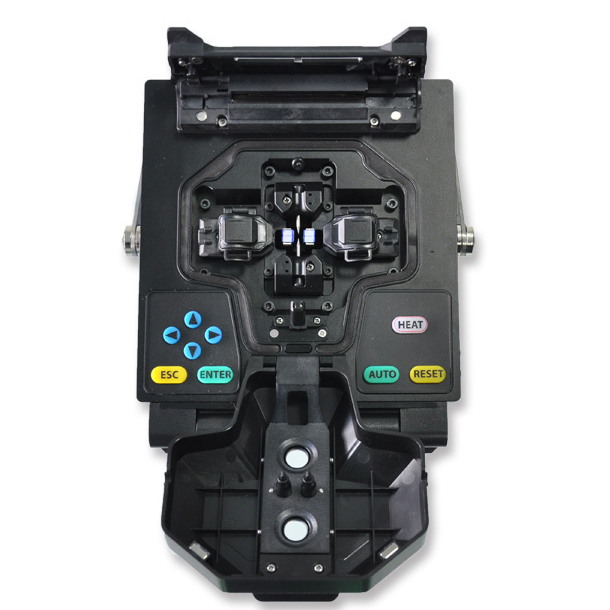

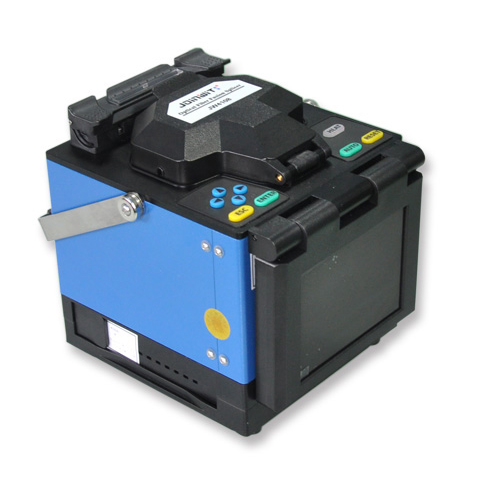

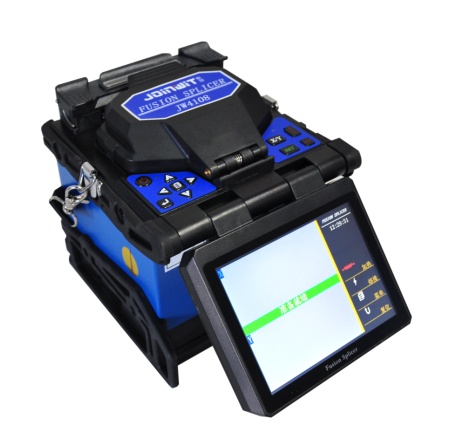

JW4108

Fusion Splicer


Features
* 5 inches high Resolution colorful LCD display
* Average splice time: 10 secon
* Average tube-heat time: 30 second
* Lithium battery: up to 180 times of continuous splice and heat
* Simultaneous X and Y views with 180 times magnification
* New developed technology providing wind and dust resistance
* Splicing mode:Auto & Manual & Full-Automation
* USB Port
* Storing 6,000 groups of splice results.
* Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

1
Products

Machine (JW4108 )

Fiber Cleaver

Fiber Stripper

AC Adaptor

Battery

Charger

Spare Electrodes

Cooling Tray

Instruction CD

Quick Reference Guide

Rubber-insulated wire stripping pliers

Rubber-insulated wire cutting fixture

One fixture which is avoid the fiber in Rubber-insulated wire broken down

Transit Case with Carrying Strap

2
Specifications
3
Standard Packages
Applicable FibersSM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series
Average Splice Loss0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss≥60dB
Tension Test2.0N(200gf)(Standard)
Splicing Program50 groups
Protection Sleeve Length 20mm, 40mm, 60mm
LanguageChinese, English
Environmental Conditions-10~+50℃(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power SupplyAC adaptor: 100~240V input voltage,  50/60Hz; 12V, 5A output voltage(DC)DC adaptor: 12V voltage 8AH
Dimensions155(W)*165(D)*150(H)
Weight2.5kg
